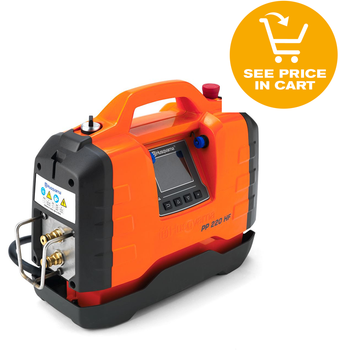

PP 220 is a versatile, water-cooled electric power pack developed for our high frequency-powered PRIME™ product range. The low weight, compact design and user-friendly display interface make PP 220 very easy to use and transport. Connects to both 3- and 1-phase power.
Features:
- For jobs requiring easy transportation: Suitable for applications where easy transportation is required both to and around the worksite.
- Low weight, ergonomic design: Easy to carry and use.
- Easy setup and transport: Only one cable and one hose from power pack to machine.
- Double connections: Possible to connect the power pack to WS 220 and other PRIME™ products simultaneously.
Applications
- Water-cooled electric high frequency power pack for the WS 220 wall saw, DM 650 drill motor, K 6500, K 6500 Ring and K 6500 Chain power cutters.
- Perfect for applications that have mulitple cutting sites due to its low weight and compact design.
Benefits
- A powerful, high frequency power pack providing fast and accurate adjustment for each operating condition.
- There is only one cable and one hose from converter to machine, which simplifies setup and transport.
- Automatic detection and setup of connected equipment and the power source make handling easy.
Motor
- Rated current (1 phase): 16 A
- Rated current (3 phase): 10 A
- Voltage: 200-480 V
Dimensions
- Product size width: 7.2 in
- Product size height: 13.8 in
- Weight: 23.8 lbs
Other
- Control type: Remote control
- Water flow, min: 0.92 gal (US)/min
- Water pressure, max: 101.5 psi
- Water temp at min flow, max: 25 °C
